Notching without CNC with notcher MZ 02 90F A

2.910,00 € without VAT.

The MZ 02 90F A notcher mills out the rounding in corners. The rounding is removed and the inside corner is pointed out. The notcher produces a sharp-edged inside corner. Very high accuracy, diamond milling cutter. Standard stroke 60mm. Notching without CNC router. Solid, durable quality.

For references see https://www.c-hessler.de/referenzen/

We are also available to answer questions by telephone. Tel.: 05741 3012080, international: +49 5741 3012080

The notcher has been used successfully and for a long time to notch corners without CNC in the kitchen furniture industry and in trade for more than a decade.
A CNC milling machine requires a very high level of repeat accuracy and spindle rotation accuracy. In addition, very precise set-up is required. All of this is eliminated with the MZ 02 90F notcher.
If gouging on the CNC is not possible due to a lack of tool slots, the notcher can keep the CNC milling machine operator busy.
A depth stop is used to prevent tear-outs on the opposite side.
The workflow is simple and quickly learnt after a few trial milling operations.
Both sides of the inside corner are machined in one stroke without CNC.
One hand grips the handle, the other rests on the front white support.
With the long stop housing, the notcher is securely positioned in the inside corner.
The notcher MZ 02 90 F A is pushed into the inside corner to notch the corner.
The machine for routing out corners has a narrow design and is also very robust. Proven in years of industrial use.
The tracing stop surrounds the motor and the milling cutter. This means that notching can be performed more precisely without a CNC than with a CNC router.
Pointing corners with the precision of mechanical engineering linear guides.
The MZ 02 90 F A notcher is a stand-alone unit with an integrated motor. It can therefore work without a CNC.
Precise notching in inside corners without CNC
The non-CNC notcher MZ 02 90 F A
Notcher MZ 02 90 F A can be integrated into the quality control system.
The notcher MZ 02 90 F A has an adjustable depth stop
Milling out the inside corner with a short work-in time.
Notching corners without CNC with the notcher MZ 02 90 F A
Manual corner milling machine
Notcher MZ 02 90 F A with long stop housing

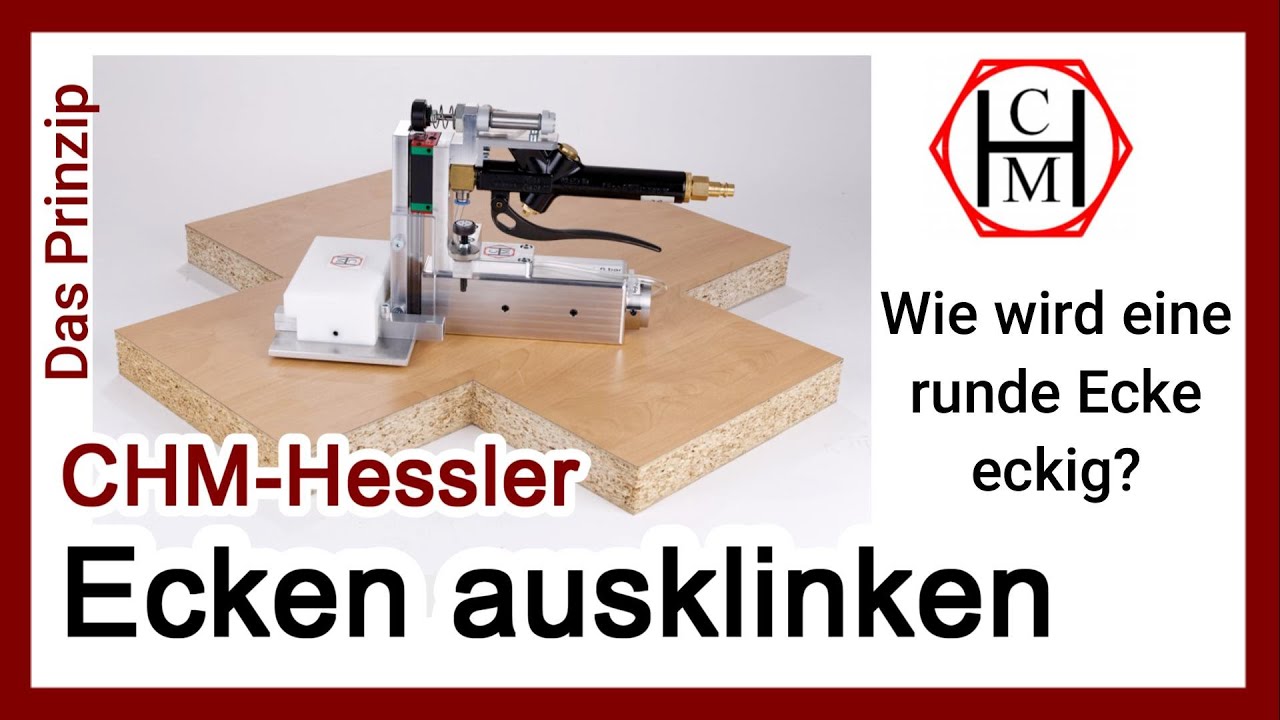

Notcher MZ 02 90 F A
The pointing unit is narrow
Notching without CNC with tactile stop
Power tool for precise work
Notcher MZ 02 90 F A with in motor
MZ 02 90 F A notcher with precise mechanical engineering components

Description

Precise notching without a CNC milling machine

Dear carpenters and joiners in trade and industry,

We have good news: precise notching without a CNC router is now possible. Tedious manual work with a file, chisel or jigsaw when notching internal corners is now a thing of the past! With our MZ 02 90F A notcher, you can remove the rounding in corners quickly and precisely, saving valuable time in the process.

Tactile milling

Thanks to the scanning milling movement of the manually guided notching unit, a high level of accuracy is achieved during corner processing. As the workpiece is protected during this process, no chipping can occur on the surface layers of the panel. The notching unit MZ 02 90F A is set to an accuracy of hundredths of a millimetre.

Even with a CNC woodworking machine, this accuracy is very difficult to achieve. With our notcher, you can rely on the consistently high quality of your products and save time. This is how notching works without a CNC router.

Save time and costs

Our MZ 02 90F A notcher is ideal for processing internal corners on panel-shaped materials made of wood or plastic. This not only saves you time, but also costs, as the risk of rejects is significantly reduced.

The notcher has been used successfully in trade and industry for more than 12 years. It is carefully manufactured by us in customised production and delivered ready for use with a diamond cutter.

Request now

Purchase our notcher and experience for yourself how easy and precise corner processing can be with notching without a CNC router. We are convinced that you will be impressed by our notcher.

Mobile, quick and flexible to use

What the notcher can do:

  • Notching of radius internal corners, for example on worktops
  • For incisions and cut-outs
  • Precise, tactile milling on the workpiece
  • Easy to operate

Task: Remove radius in the corner

Solution: Milling a corner

Personalised advice

Call and consult | Test free of charge | Order directly | Pass on and share | Skype contact | Live demonstration from the showroom

Field of application
  • The notcher starts where the router ends
  • Notching of radius internal corners, for example on worktops
  • Lower costs than with a machining centre
  • Very simple operation, very good result
Function and operation
  • Position the stop housing in the inside corner
  • Pull the start lever: The engine turns and the cylinder is retracted
  • Continuously advance the rotating milling cutter through the plate
  • Release the start lever and push the engine back to the starting position
Price
  • Euro 2810 net + shipping
  • 1 week test without obligation and free of charge
Technical requirements
  • Compressed air, limited to 6 bar
  • Regular addition of compressed air device oil
Scope of delivery
  • Machine
  • Milling cutter, mounted and preset
  • Every machine with milling cutter is tested and approved on wood/plastic
  • Original equipment compressed air device oil with specification
  • Operating instructions
  • Tool

The notcher is easy to handle:

The notcher in use, here during worktop production
Before: The workpiece has the radius from CNC routing in the inside corner - After: The radius on the inside corner is removed in a single work step.
The components
The depth stop is set so that the panel is milled from the first side. - After turning the panel, the fence is pushed back and routing is completed from the second side.
Before notching, the workpiece has a radius on the inside corner. - After notching with the corner former, the radius is cleanly removed.
Maximum inner radii: Workpiece thickness 16mm/maximum inner radius 8mm - Workpiece thickness 18mm/maximum inner radius 10mm - From workpiece thickness 19mm/maximum inner radius 12.5 mm
Work sequence: 1. place the stop housing in the inside corner, 2. pull the start lever: The motor rotates and the cylinder is retracted, 3. continuously advance the rotating milling cutter through the plate, 4. release the start lever and push the motor back to the starting position
Notcher MZ 02 90F A

Further information



 Notcher with tracing milling



  • Stop housing with integrated Special-Air motor
  • 1 Special-Slide milling cutter, shank 8 mm, length of cutting edge parallel to the axis 13.5 mm
  • Linear guide with recirculating ball bearing carriage and hardened linear rail
  • Eccentric sleeve on the air motor for axial and radial adjustment
  • Manually operated Switching on/off of the air motor
  • Pneumatic stopper cylinder
  • Depth stop for tear-free notching on both sides
  • The plunge depth is limited with the depth stop. This means that a tear-free cut can also be produced on the second side after turning the panel.
  • Exclusively for removing the radius on 90° internal corners on panel-shaped materials made of wood or plastic, such as worktops.

Working method/limit values:

1. Maximum Thickness of the workpiece: 60mm

2. Minimum Length the shortest side in an all-round enclosed Excerpt:

200mm

3. For one-sided tear-free The maximum permissible inside corner radius for notches is 12.5 mm.

4. For Tear-free on both sides For notches, the workpiece is milled from the first side and finished from the second side after turning. The following limit values apply to the workpieces to be machined:

  • For workpiece thickness 16mmInside corner radius up to 8mm
  • For workpiece thickness 18mm: Inside corner radius up to 10mm
  • Workpiece thickness 19mm and larger: Inside corner radius theoretically up to 12.5 mm. (Other values on request).

5. The absence of tear-outs at the radius outlet also depends on the material. If necessary, the radius must be reduced.
