Edge milling machine KF 400 TOP

Name: Edge milling machine KF 400 TOP
SKU: kantenfraese-kf-400
Availability: InStock

490,00 € without VAT

The KF 400 TOP edge milling machine has an air motor and is particularly quiet and light . It therefore has a very good handiness. It is very suitable for light deburring / chamfering / rounding work. Similar to the former Lamello Profila Pro or Wegoma DKF32. With German industrial air motor.

With the KF 400 TOP you get a top product in terms of manageability and noise reduction. We are not aware of any lighter and quieter edge milling machine.

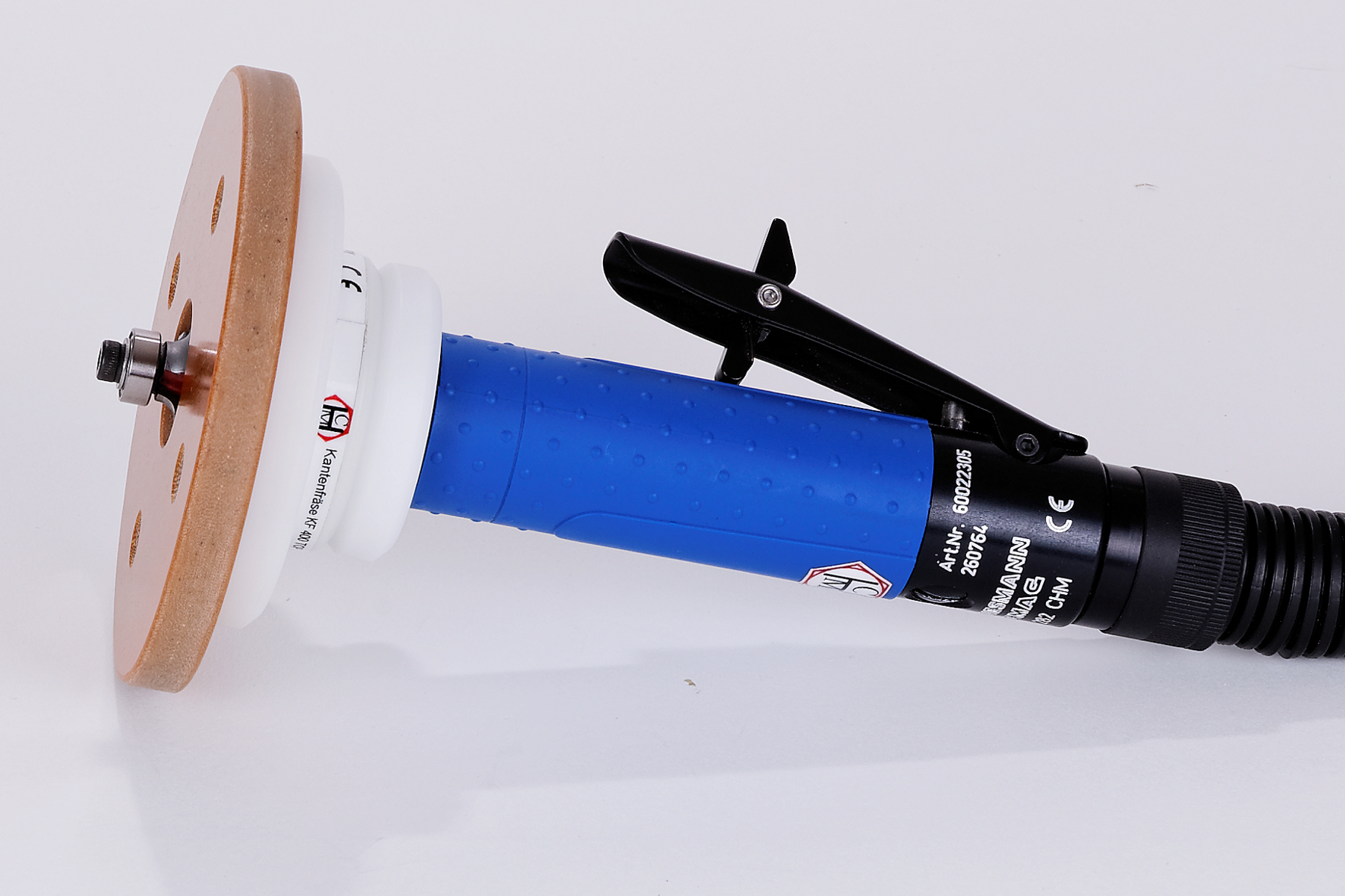

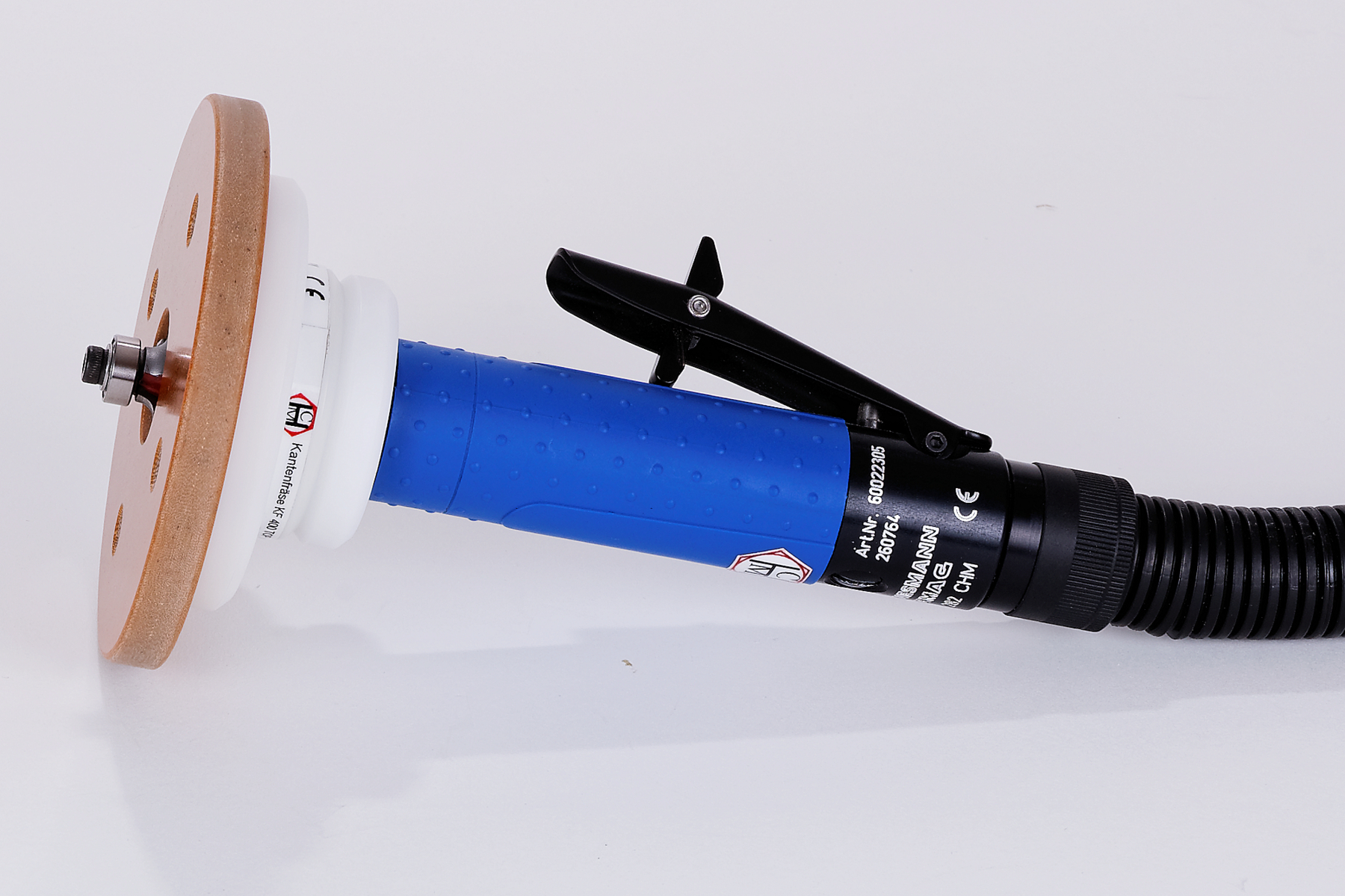

Pneumatic edge milling machine KF 400 TOP

Edge milling machine compressed air KF 400 TOP 12

Edge milling machine compressed air KF 400 TOP 1

Edge milling machine compressed air KF 400 TOP 2

Edge milling machine compressed air KF 400 TOP 3

Edge milling machine compressed air KF 400 TOP 4

Edge milling machine compressed air KF 400 TOP 5

Edge milling machine compressed air KF 400 TOP 7

Edge milling machine compressed air KF 400 TOP 8

Edge milling machine compressed air KF 400 TOP 9

Edge milling machine compressed air KF 400 TOP 10

Edge milling machine compressed air KF 400 TOP 11

Description
More information

Description

The light and handy compressed air edgers

Light and robust, optimal for radius and chamfer up to 2 mm. Similar to the former Lamello Profila Pro compressed air. For shank 6 mm. If you want shank 8 mm, there is the KF 400 III.

Very good concentricity, high-quality German industrial motor. With integrated air supply and exhaust hose.
Price Euro 490,00, including high quality R2 or chamfer milling cutter, mounted and tested
Extremely light and handy: Only 0,58 kg at the milling head.

KF 400 TOP: A powerful piece of technology

Personal advice

KF 400 in use

System features

Application area

The KF 400 edge milling machines are particularly light and easy to handle. Typical application is the chamfering or rounding of plastic edge bands that have already been milled flush or on panels. Their performance is lower than that of a large edge milling machine. The performance limit is reached for a 2mm thick ABS plastic edge when it is rounded with 2mm overhang with a new R2 cutter.

Function and operation

The handiness is unsurpassed

The best way to find out what the KF 400 TOP actually means is to touch it yourself. For this purpose, we offer commercial users a free and non-binding test.

Price

1 week test without obligation and free of charge
Price see above

Technical requirements

Milling cutters with shank 6 mm can be accommodated.

For operation, it is necessary to regularly supply compressed air device oil. This can be done for sporadic use by directly dripping into the
compressed air connection plug or for continuous use by a maintenance unit set to 1 drop of oil per minute.

Scope of delivery

The KF 400 TOP is supplied with a supply air and exhaust air hose. The exhaust hose surrounds the compressed air supply hose as a flexible sheath and directs the air away from the work area.

An additional effect of the exhaust hose is noise reduction. The KF 400 TOP is quieter than an electric router or electric edger.

Special router for edge milling with compressed air

KF 400 TOP

Size comparison with a ballpoint pen

Unsurpassed handiness

Supplied with a supply air and exhaust air hose

KF 400 TOP: A powerful piece of technology

More information

Edge milling machine KF 400 TOP with large base plate

Pneumatic industrial drive of German manufacture, particularly quiet and lightweight
Shank 6mm
max 24,000 rpm
max 6 bar
Sensitive axial adjustment by turning in threaded receptacle

Large base plate (Round, Drm. 105mm)

R2 cutter with carbide cutting edges and thrust bearing for wood or plastic, shank diameter 6mm
Other cutters are no problem, please request

The KF 400 TOP edge milling machine has an air motor and is particularly quiet and light. It therefore has a very good handiness. It is very well suited for light deburring/ chamfering/rounding work.

The R2 milling cutter is already included in the standard equipment. Other milling cutters are no problem. Please request.

The high-quality, pneumatic special drive is manufactured in Germany according to our specifications.

With the KF 400 TOP you get a top product in terms of manageability and noise reduction. We are not aware of any lighter and quieter edge milling machine.
